Brushless Endo Motor

CICADA

Brushless Endo Motor

Category: Endo Motor
Product type: Endo Motor
Model: T-Fine-II (Pro)
Availability: In Stock
Source: CICADA Official Website

Request a Quote Contact Us

Product Details

For product presentation only. Contact Yafa Dent for availability and pricing.

Key features

Features:

The range of speed 100-2500rpm, torque 0.4 N▪cm~5.0 N▪cm
Integrated apex locator mode delivers safety protection
T-mode, safe ledge bypassing

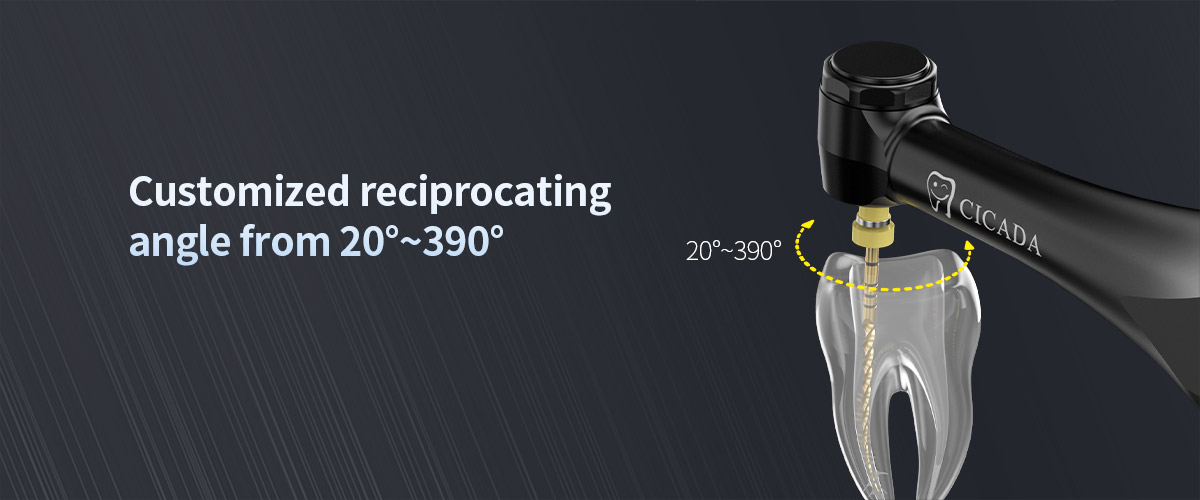

Customized reciprocating angle from 20°-390°

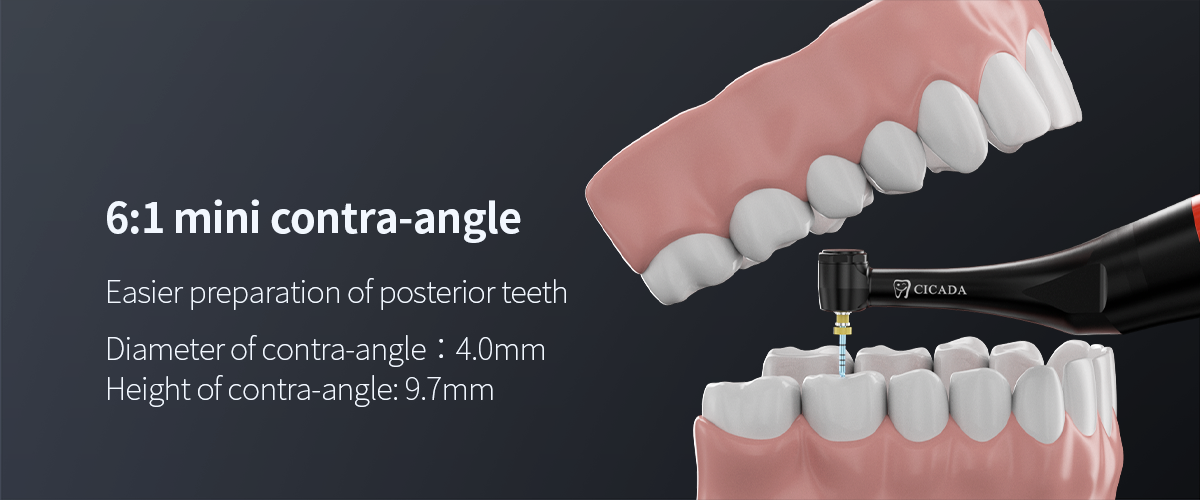

6:1 mini contra-angle, easier preparation of posterior teeth
*Diameter of contra-angle：4.0mm / *Height of contra-angle: 9.7mm
Integrated apex locator mode delivers safety protection

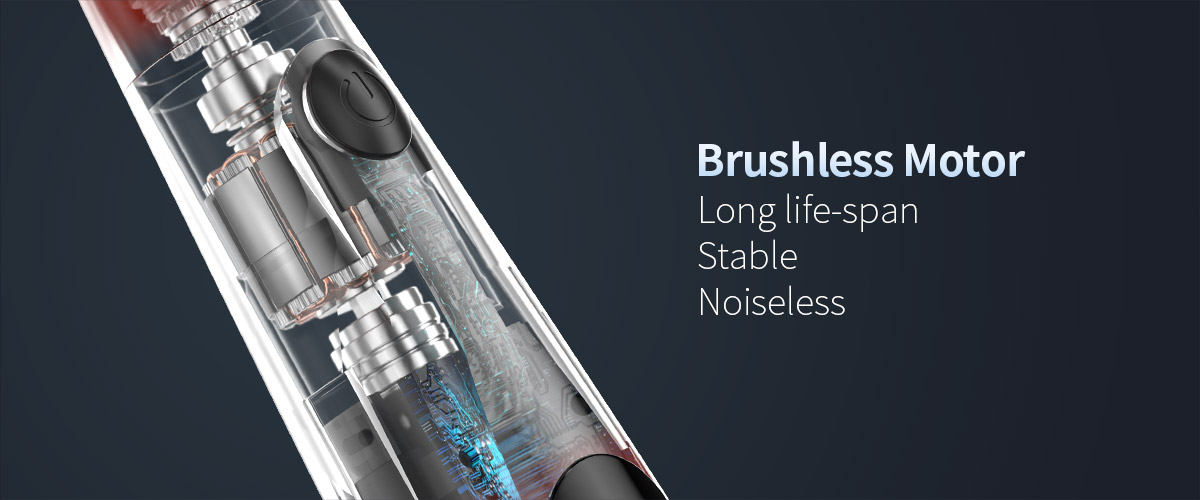

High performance brushless motor, long life and low noise

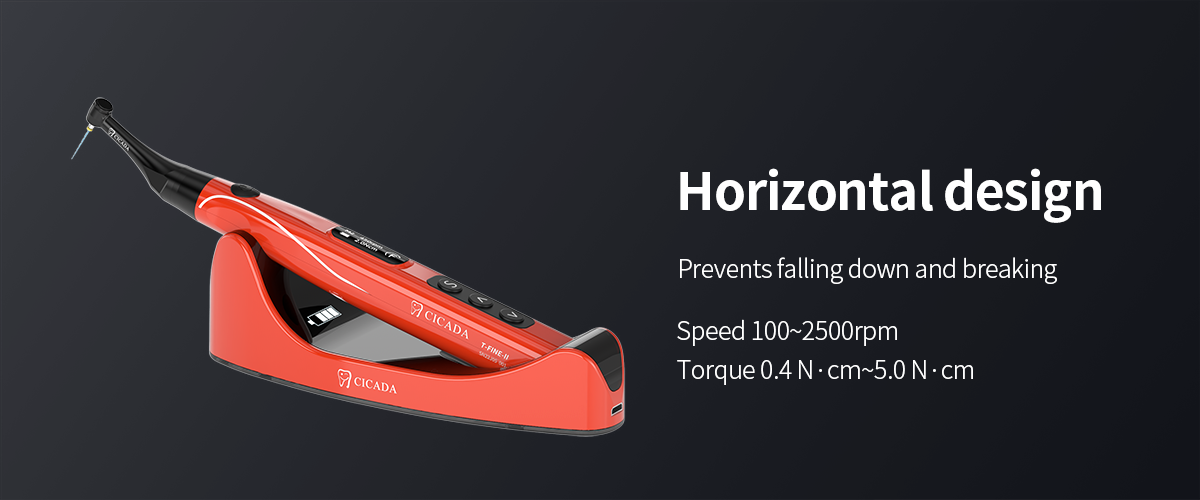

Horizontal design prevents falling down and breaking

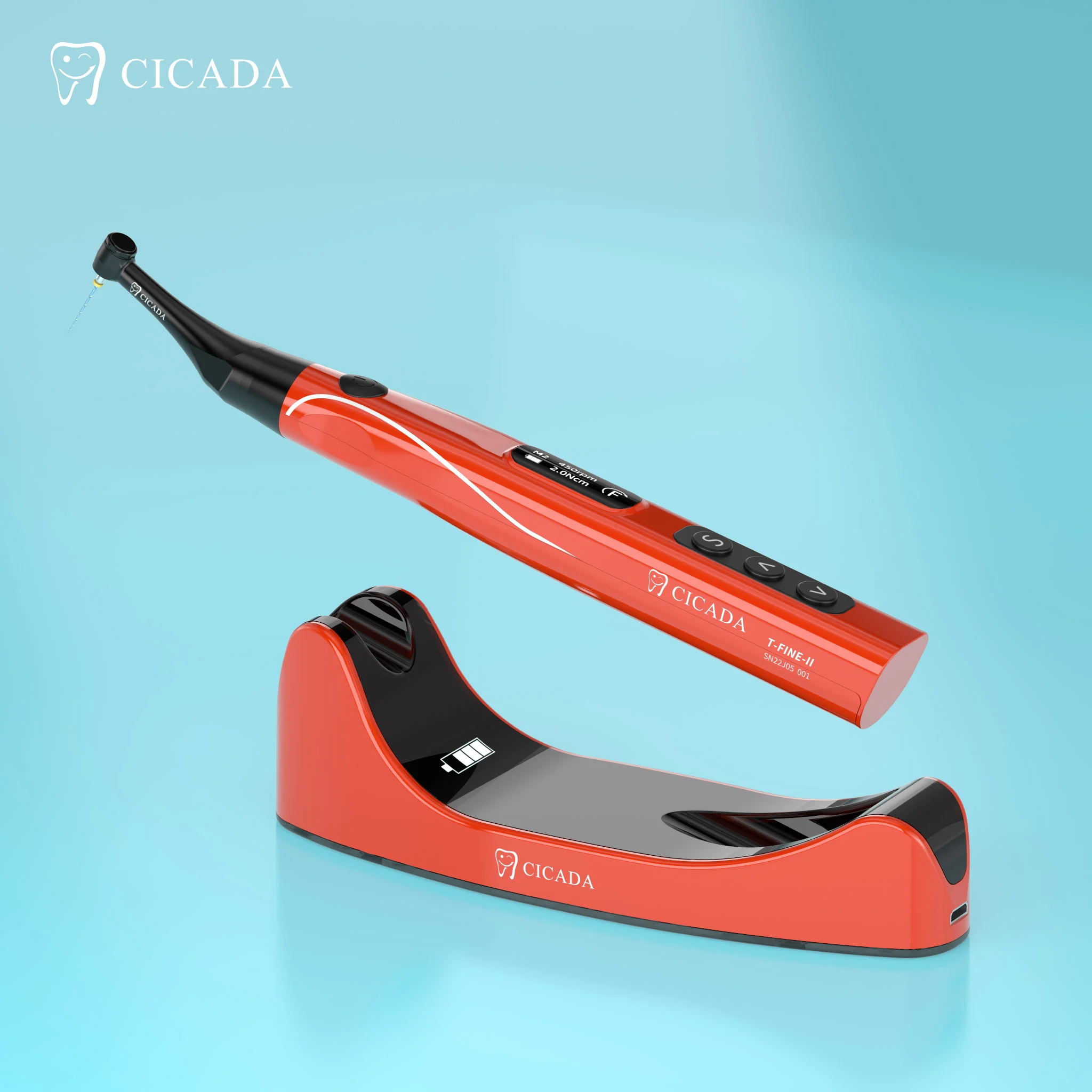

Charging base with charging state display

Specifications & documents.

Product specifications and downloadable materials.

Product parameters:

Head	6:1 contra angle
Voltage	3.7vdc
Battery capacity	1200mAh
Application	Root canal treatment
Rotate speed	100-2500rpm
Weight	0.7kgs
Color	Orange
Torque range	0.4-5.0 N.CM

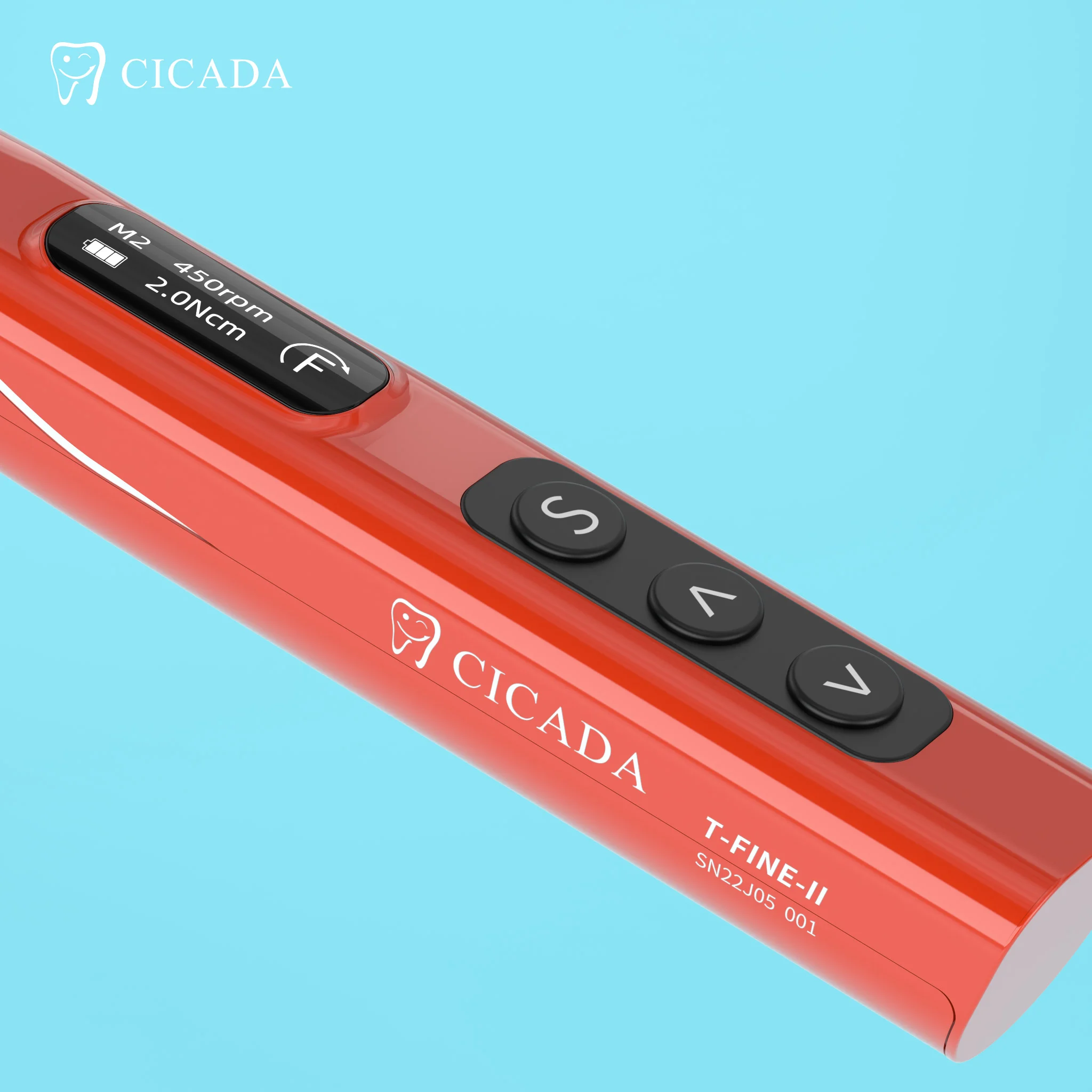

Real -time torque display	Available
Forward degree	20°~390°
Reverse degree	20°~390°
Root canal measurement	Without Apex
Charging Type	Horizontal type

Structure and components:

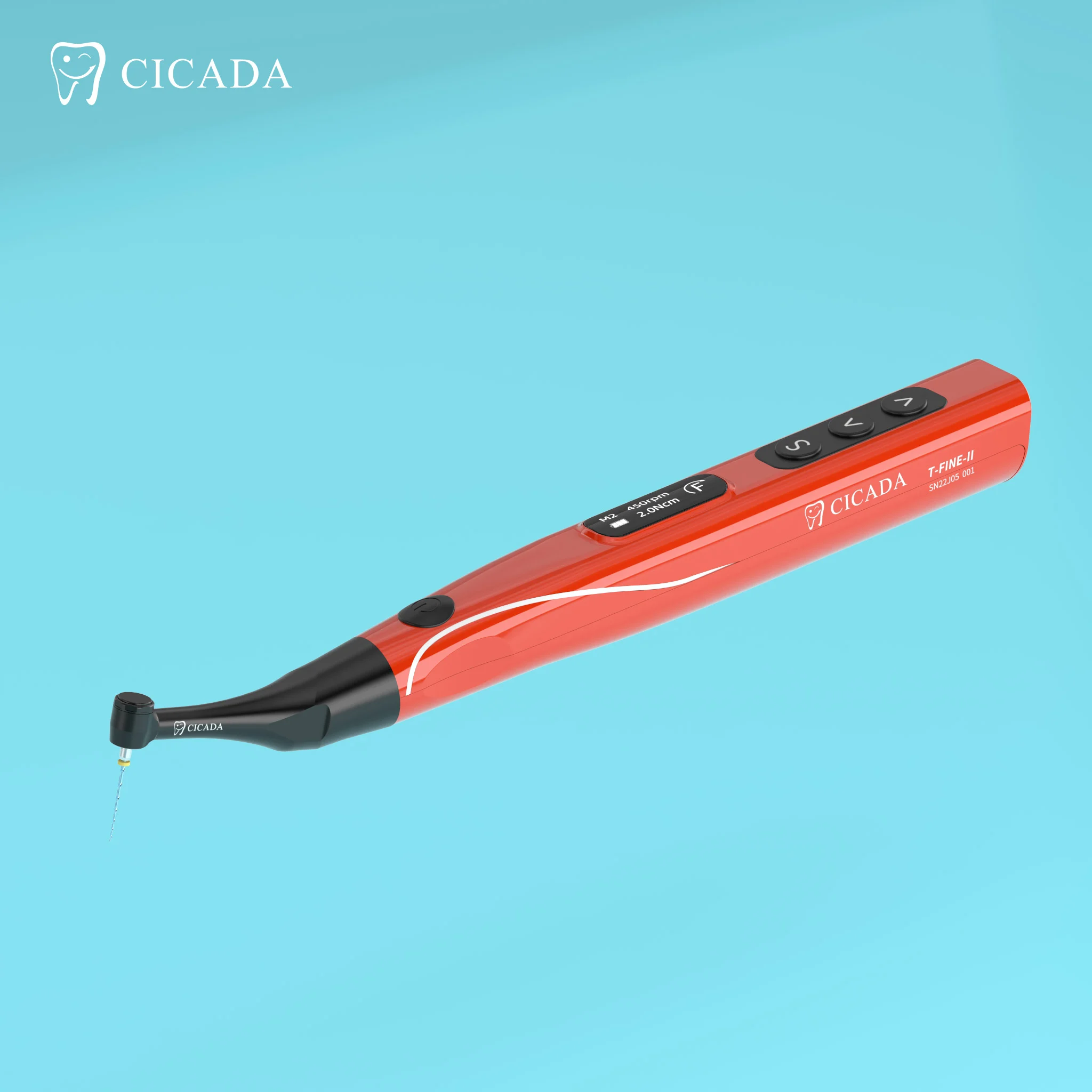

Endo Motor Main Unit 1PC

Charging Base 1PC

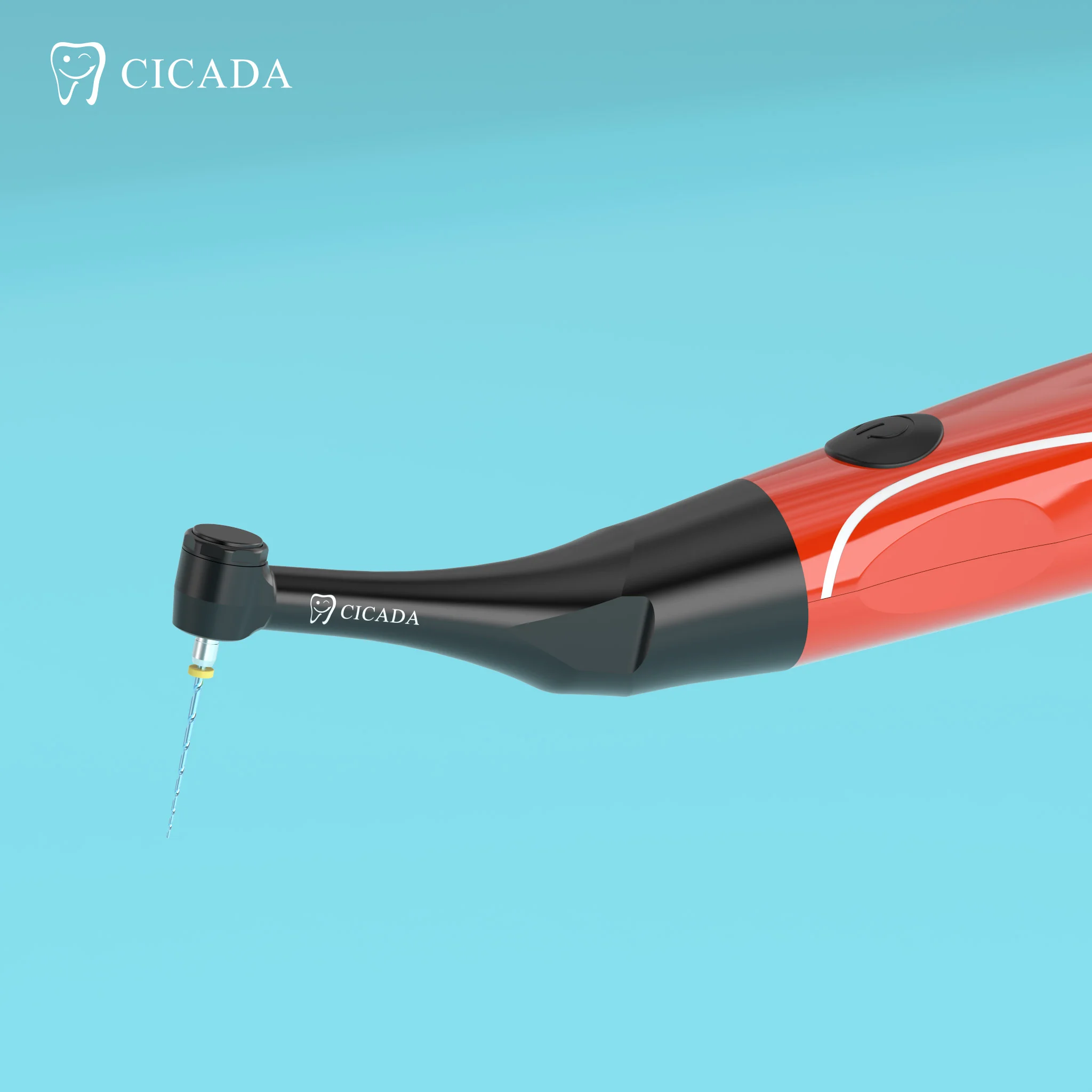

Electrical Contra Angle 1PC

Adapter 1PC

Cover 1PC

Documents

Product catalogue
